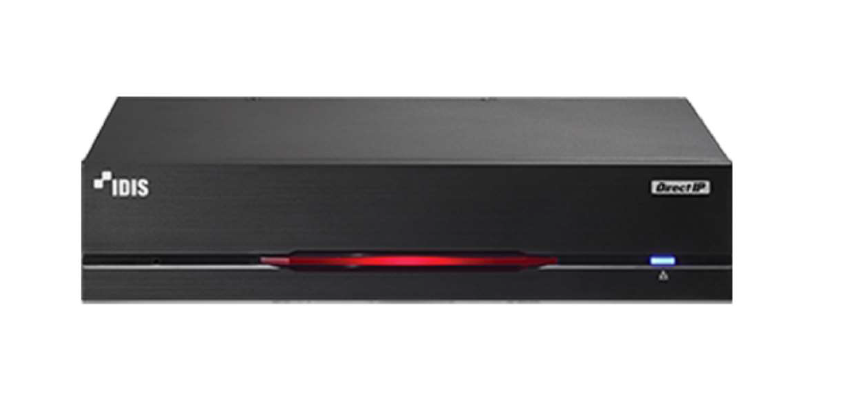

DV-1304-A
4Ach Al in the box
- Specialized in DirectIP™ NVR
- Supports Object Detection
- Supports Line Crossing
- Supports 4ch IP Camera
- Supports Intrusion
- Supports Face Detection
- Supports the most advanced IDIS Deep-Learning Analytics (IDLA)
- Supports Loitering
- Generating real-time event notifications with high accurancy
Video | ||
Video Inputs | 4 IP Channels | |
Supported Device | DirectIP NVR | |
VA Support | Object Detection, Intrusion, Loitering, Line Crossing, Face Detection | |
Network | ||
Video Compression | H.265, H264 | |

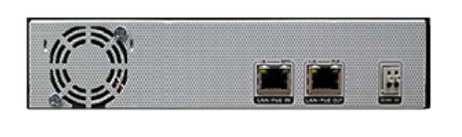

Network Connection | 100M Ethernet x 1 (100Base-TX) with PD 100M Ethernetx 1 (100Base-TX) with PSE (PSE need Adaptor) | |
Environmental | ||
Power Input | 48V=, PoE | |
Power Consumption | 48V=, 0.8A, 38.4W PoE, IEEE 802.3at(Class 4), 25W DC OUTPUT : 48V=, 0.354 MAX | |
Approval | FCC, CE, KC | |
Mechanical | ||

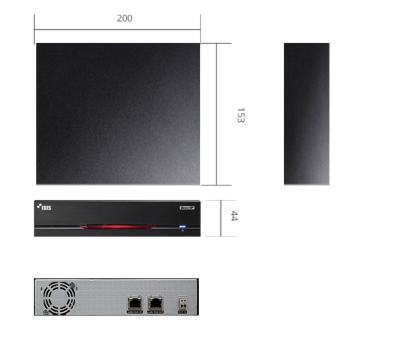

Dimensions (W x H x D) | 200mm x 44mm x 157.6mm (7.9″x 1.7″ x 6.2″) | |
Weight |
|
